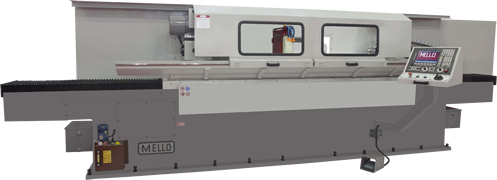

UNN-2/1200 MODEL
GRINDING CAPACITY
Maximum distance between centres - 1200mm
Maximum grinding length - 1200mm
Standard height of centres over the table - 200mm
Maximum grinding diameter - 400mm
Maximum weight between centres - 150Kg
GENERAL DATA
Grinding wheel dimensions - 350 x 50 x 127mm
Morse taper in workhead spindle - #5
Morse taper in tailstock centre - #4
Total table travel - 1300mm
Table horizontal swivel in both directions - 5º30’
Real wheelhead minimum programmable infeed - 0,001mm
Workpiece related diameter wheelhead infeed per handwheel scale division - 0,002mm
Maximum crosswise wheelhead stroke - 200mm
Workhead continuous variable speed - 20rpm to 600rpm
Grinding wheel motor power - 7,5 HP
Net weight - 3800Kg
PRODUCTS
-
Special Grinding Machines-
UNS-2
-
Special Grinding Machines
Grinding Machine for Valve Camshafts
(Included in the basic machine price)
- High structural rigidity of the machine, including the heads porta-wheel, door-pieces and counter edge.
- Heads-door grindstone and door-pieces with their axes mounted on angular contact bearings high precision, in armored cartridges with permanent lubrication.
- absolute measuring system (direct measurement) for the axes X and Z by means of linear transducers (strips) high precision.
- X and Z axes driven by recirculating ball screws rectified great rigidity (40 mm) and high accuracy class.
- handwheel for manual movement of axes X and Z.
- numerical control unit CNC with: - ISO Programming.
- linear and circular interpolation of the axes.
- MELLO software application.
- complete electrical and electronic framework and command buttonhole with the CNC monitor installed in tilt stand.
- Automatic lubrication, with independent drive, driven and overseen by the CNC.
- Standard painting in epoxy paint, the color composition "gray, white and red."
(Included in the basic machine price)
- 01 Complete Cooling System
- 02 Wheels (AA60K6V and AA46K6V)
- 02 Flanges door-wheels
- 01 Holder for diamond grinding wheel dressagens
- Set of two diamonds 01
- 01 static Balancer with balancing shaft
- 01 Puller
- 02 support centers with hard metal tip for the heads-door parts and against tip
- 03 skidders Clips
- 01 Set levelers and bearing plates
- 01 spare belts Set
- 01 Set service keys
- 01 User manual
- 01 Automatic lubrication unit.
- internal grinding system and corresponding software
- Luneta two support
- Luneta three support
- automatic measuring system process through electronic autocalibrador
- Automatic axial positioner for part referencing the Z axis
- cooling tank with filter paper
- cooling tank with filter paper and magnetic separator
- Device forceps holder assembly and tongs
- universal plate three nuts
- Head against edge with automatic hydraulic drive pedal
- Special software dedicated.
