FEATURES DIFFERENTIAL
Engine power of grinding wheels - CV - 1.5
normal speed of the wheels - RPM - 3950 and 5900
Rotations of wheels with special pulleys - RPM - 2930 and 5900
Giro door-wheels head in the horizontal plane - degrees - 360
Giro door-wheels head in the vertical plane - degrees
Basic machine weight with normal accessories - kg - 1168
COMMON FEATURES
capacity
maximum permissible diameter (with normal counter-tips) -mm 270
Maximum distance between counter-ends - 890 mm
Maximum distance between the holder parts of a head speed and tailstock - 720 mm
Maximum distance between the head holder parts four-speed and tailstock - 705 mm

courses longitudinal travel of the table - 625 mm
Cross slide travel - 220 mm
vertical stroke door head - grinding wheels - 200 mm
Table rotation (turn around) - 180 degrees
General
Graduations at the end of the table - mm / m 10
Graduations on the table - 90 degrees
Height of tips on the table surface - 120 mm
horizontal distance of spontas the center of the table T slot - 122 mm
table surface - mm 11125 x 140
Slot table T - ISO 299 - 14 mm
Tool head - F42
Tree Cone of a side MORSE 5
Cone across the ISO tree 50
normal wheels
straight cup: 127 x 38 x 32 mm (5 "x 1.1 / 2" x 1.1 / 4 ")
Plate: 152 x 19 x 32 mm (6 "x 3/4" x 1.1 / 4 ")
Rectum: 152 x 13 x 32 mm (6 "x 1/2" x 1.1 / 4 ")
Conical cup: 89 x 38 x 32 mm (3.1 / 2 "x 1.1 / 2" x 1.1 / 4 ")
Packing Box 1860 x 1500 x 1450 mm

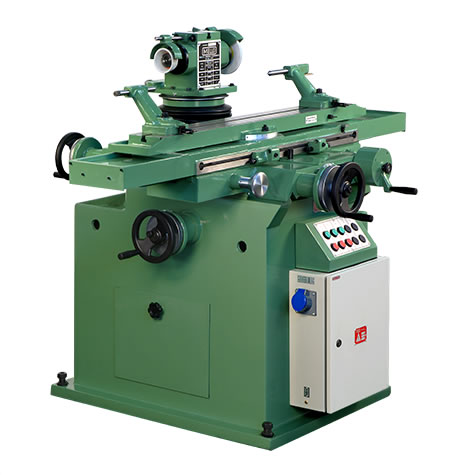

Both the AMX-15 grinder like AMY-15 equipped only with their normal accessories edge accurately and quickly all common tools such as cylindrical milling cutters with cuts in 1,2 or 3 sides; Profiled cutters; Conical mills; Helical milling; end mills; tapered and parallel reamers; fixed and expandable reamers; males; circular saws to cut metal up to a diameter of 1220mm and carbide cutters faceadoras to a diameter of 200mm (8 ").
normal accessories of Amateur AMX-15 and AMY-15
  • F25 - cone Morse Taper bushing # 5 to # 2.
  • F26 - cone Morse Taper bushing # 5 to # 4 and a separate point with Morse cone # 4
  • F27 - cone Morse Taper bushing # 5 to # 3.
  • F28 - Special screws (4) to fix several pieces on the table.
  • F29 - Screw with nut and washer special for part fixing
  • F41 throughout the F30.
  • F30 - Universal holder for teeth, with two blades and a screw.
  • F31 - Support for single teeth with off-center blade.
  • F32 - Left Tailstock with protractor for angle of incidence point of support and fixing screw.
  • F33 - Tailstock normal duty with two points, long and short types, and set screw.
  • F34 - Indicator centers.
  • F35 - Special screw with washer to secure large cutter in the tool head.
  • F36 - puller for the tool head.
  • F37 - Key to the flanges of the wheels
  • F38 - pin key for two bore diameters.
  • F39 - Shaft Extension door-wheels with 100 mm long and 32 mm in diameter.
  • F40 - Support for diamond and sleeve with Morse taper No. 1.
  • F41 - fixative Ask simple teeth support
  • F42 - Head toolholders with bracket and base.
  • F43 - long stem closed cover to grinding wheels of 152 mm (6 ") diameter
  • F44 - Open Coverage average rod for grinding wheels 127mm (5") diameter
  • F45. - open cover short rod for grinding wheels of 89 mm (3.1 / 2 ") diameter
  • F46 - Clamp the angle of incidence of the indicator.
  • F47 to F50. - Four wheels of different sizes, four flanges and an extractor
Special accessories of Amateur AMX-15 and AMY-15
  • F51 - Apparatus for sharpening face milling cutters with large diameters
  • F52 - Apparatus for sharpening constant profile cutters.
  • F53 - Extension of chuck-wheels.
  • F54 - Apparatus for sharpening drills, Cilix.
  • F55 - Apparatus for grinding strips and blades.
  • F56 - abrasive dust cleaner.
  • F57 - Apparatus for sharpening small end mills with stem.
  • F58 - Internal Rectification apparatus.
  • F59 - Cooling System.
  • F60 - Walrus Universal.
  • F61 to F65 - Head holder parts of a speed.
  • F66 - Head holder parts four-speed.
  • F67 - Unit # 1 for edging radii for milling and grinding spherical caps
  • F68 - Unit # 2 for edging radii for milling and grinding spherical caps
  • F69. - Grindstone 200 mm (8 ") for rectification
  • F70 -. Gen. propellers lituus model
  • F71. - hydraulic equipment
  • F72 -. apparatus for long reamers grinding or milling cutters mounted on long shafts
  • F73 permanent magnetic Board
  • F74 -. forceps holder apparatus
  • F75 - static Balancer .
  • F76 - universal board three chestnuts
  • F77 - Device divider to the tool head
  • Other special accessories not shown:.
  • - 0.5 carat diamond mounted cone Morse # 1
  • - Perfilador radial and angle grinding wheels, PRA-10
  • -. detalonador apparatus
  • -. optical Profiler optidress-PROJECTOR of wheels
