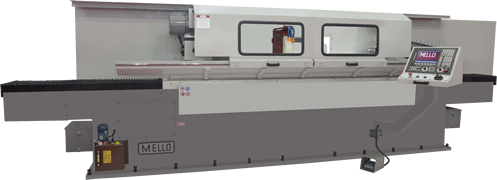

MODELS UNN-2/2000 Filmography Rectification Capacity: Filmography rectifiable maximum length - 2000 mm Filmography Retificável- maximum diameter 400 mm
Height of centers on the table- 200mm
maximum permissible weight of 500 Kg pontas-
Filmography TABLE (SHAFT "Z") Filmography Course Máximo- 2050mm
minimum increment programável- 0,001 mm Filmography Máxima- speed 5000mm / min Filmography horizontal inclination +/- 5 Filmography Filmography HEAD PORT-grindstone (AXIS "X") Filmography máximo- course 300mm Filmography minimum increment programável- 0,001 mm Filmography Máxima- speed 5000mm / min Filmography Filmography grindstone Filmography Diameter - 457 mm
Width - 50/75 mm
Hole - 127 mm
Peripheral speed - 33 m / s
Filmography HEAD DOOR PARTS
Cone tree- CM 5 Filmography Turning 360º horizontally
programmable speed: minimum / máxima- 05/300 RPM
Filmography HEAD AGAINST RUSH
Cone against tip- CM 5 Filmography Course- 32mm Filmography Filmography ENGINES
Engine grinding wheel (CA) - 15 HP Filmography Engine head holder parts (CA) c / frequency inverter -5 HP
cooling pump motor (CA) - 0.50 HP
Engine lubrication unit (CA) - 0.12 HP
tip against head Engine (CA) - 3 HP Filmography Servomotor door-grinding head, "X" axis (CA) - 16.5 Nm Filmography Table servomotor, "Z" axis (CA) - 27.3 Nm Filmography Filmography GENERAL
geometrically precise ISO 2433
liquid- weight 5600 kg
(Included in the basic machine price)
  • Oil-hydraulic system composed of variable flow vane pump, solenoid valves, manual valves, piston for longitudinal movement, piping and hoses.
  •
  • Automatic electrical system for transverse movement.
  •
  •  Command by PLC (Programmable Logic Controller).
  •
  • Longitudinal and transverse automatic rollbacks controlled by proximity sensors.
  • Longitudinal movement with variable speed.
  •
  • Transverse movement, the intermittent and continuous modes, respectively with magnitude and variable speed.
  •
  • Motorized vertical movement for fast positioning.
  •
  • Automatic central lubrication, controlled by the PLC.
  •
  • Vertical manual advances of 0,005 mm by dial division and cross 0.020 mm per dial division.
  •
  • Full electrical panel.
  •
  • Standard painting in epoxy paint, in the colors "gray, white and red."
  •
  • Precision according to ISO 1986 standard.
  •
(Included in the basic machine price)

  • High structural rigidity of the machine, including the heads porta-wheel, door-pieces and counter edge.
  •
  • Heads-door grindstone and door-pieces with their axes mounted on angular contact bearings high precision, in armored cartridges with permanent lubrication.
  •
  • Absolute measuring system (direct measurement) for the axes X and Z by means of linear transducers (strips) high precision.
  •
  • X and Z axes driven by recirculating ball screws rectified great rigidity (40 mm) and high accuracy class.
  •
  • Handwheel for manual movement of axes X and Z.
  •
  • Numerical control unit CNC with: - ISO Programming.
  •
  • Linear and circular interpolation of the axes.
  •
  • MELLO software application.
  •
  • Complete electrical and electronic framework and command buttonhole with the CNC monitor installed in tilt stand.
  •
  • Automatic lubrication, with independent drive, driven and overseen by the CNC.
  •
  • Standard painting in epoxy paint, the color composition "gray, white and red."
(Included in the basic machine price)

  • 01 Complete Cooling System
  •
  • 02 Wheels (AA60K6V and AA46K6V)
  •
  • 02 Flanges door-wheels
  •
  • 01 Holder for diamond grinding wheel dressagens
  •
  • Set of two diamonds 01
  •
  • 01 static Balancer with balancing shaft
  •
  • 01 Puller
  •
  • 02 support centers with hard metal tip for the heads-door parts and against tip
  •
  • 03 skidders Clips
  •
  • 01 Set levelers and bearing plates
  •
  • 01 spare belts Set
  •
  • 01 Set service keys
  •
  • 01 User manual
  •
  • 01 Automatic lubrication unit.
